Axtel Ip Phone Ax-200

SKU: Axtel - IP Phone AX-200

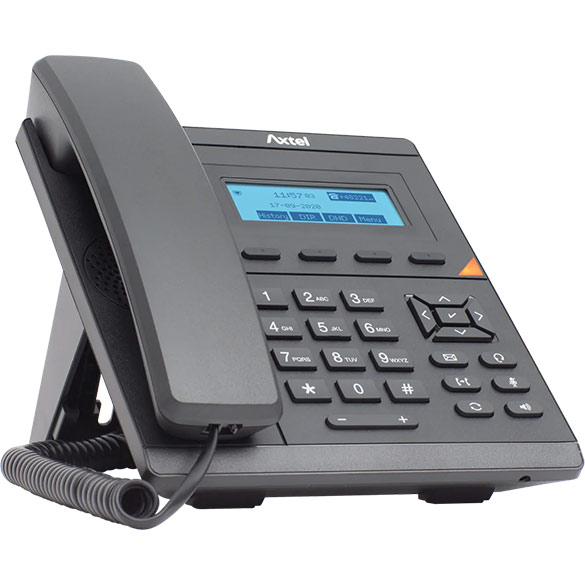

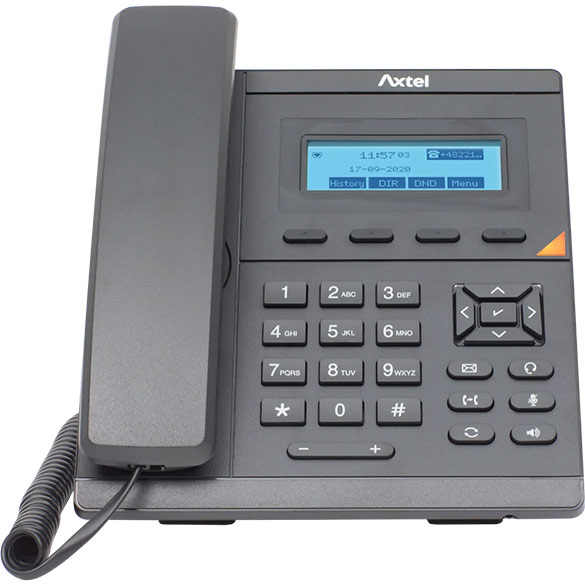

The AX-200 desk phone is Axtel’s entry-level IP phone – basic, yet offering functionality that does not differ much from the one found in more advanced models. Remarkable efficiency and smoothness of operation encapsulated by solid construction of high quality materials allow complete reliability during continuous use without the worry of mechanical damage. Big, graphical display with backlight provides quick and easy visual access to call and message waiting indications. Two 10/100 Mbps network ports provides you with ability to connect additional devices, such as laptop or PC, allowing one of them to be used for connection to the local network or power supply utilizing PoE (Power over Ethernet) technology. However, if your office building is not equipped with a new generation switch, you can easily use an optional external power supply. The AX-200 allows 1 SIP-line registration and up to five-way conference calling. For those who value comfort and prefer hands-free phone calls, there is a RJ9 port for headset connection. The desk phone comes with a convenient desk stand, or can also be mounted on a wall. The desk phone will do great in public spaces including hotels, thanks to the built-in Kensington Lock slot which provides anti-theft security and nearly automatic introduction guaranteed by the PnP (Plug&Play) technology and a central management point. This extremely intuitive device with its simplicity and comfort of use will guarantee an absolutely delightful user experience.

Phone Features

1 SIP account
Call hold, mute, DND
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Redial, call return, auto answer, direct IP call
5-way conferencing
Group listening, SMS, emergency call
Ring tone selection/provisioning
Set date time automatically or manually
Dial plan per account
Action URL/URI


Feature keys

6 feature keys: mute, headset, message transfer, redial, speaker
4 context-sensitive “soft” keys
5 navigation keys, volume control keys



Dual-port 10/100M Ethernet
Power over Ethernet (IEEE 802.3af), class 2
1xRJ9 (4P4C) handset port
1xRJ9 (4P4C) headset port


Voice Codecs Features

HD voice, HD handset, HD speaker
Codecs: iLBC, G.722, G.711(A/μ), Opus
G.723, G.729AB, G.726-32
DTMF: In-band, RFC 2833, SIP INFO
Full-duplex hands-free speakerphone with AEC


Physical Features

Stand with one angle at 40°
Wall mountable
External universal AC adapter :
AC 100~240V input and DC 5V/1.2A output
Power consumption (PSU): 1.6~2.6W
Power consumption (PoE): 2.0~3.2W
Operating humidity: 10~95%
Operating temperature: -10~50°C



Local phonebook up to 1000 entries
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
Call history: dialed/received/missed/forwarded
Black list



Configuration: browser/LCD-Menu/auto-provision
Auto provision via HTTP/HTTPS FTP/TFTP
Auto-provision with PnP
Support SNMP&TR-069
Reset to factory, restart, reboot
Local tracing log export, system log
Phone lock for personal privacy protection


IP-PBX Features

Busy Lamp Field (BLF), bridged Line Appearance(BLA)
Anonymous call, anonymous call rejection
Message Waiting Indicator (MWI), voice mail
Intercom, paging
Call park, call pickup
Music on hold


Display and Indicator

132×48 pixel graphical LCD with backlight
LED for call and message waiting indication
Illuminated LEDs for line status information
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number


Network and Security

SIP v1 (RFC2543), v2 (RFC3261)
SIP server/proxy redundancy
NAT Traversal: STUN mode
DHCP/static/PPPoE/IEEE802.1X/open VPN
HTTP/HTTPS web server
Time and date synchronization by SNTP
QoS: 802.1p/Q tagging (VLAN),
Layer 3 ToS DSCP
TLS(Transport Layer Security), SRTP, ZRTP
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
IPv6 supported
